B07 540000 V2 PTFE Bushing for Electron E Coat Customizable OEM Polished Surface Master Coating Gun Feed V2
-
Powder injector (type IG06) | |
| Flow IG06 Powder injector - complete (pos. 1-13) | 1007 780 |
| A | Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12) | 1005 589 |
| B | Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13) | 1005 590 |
| C | Injector body - complete (incl. pos. 1, 2, 10 and 11) | 1006 530 |
| 1 | Injector body (without pos. 2) | 1006 484 |
| 2 | O-ring - Ø 16x2 mm | 1007 794# |
| 3 | Insert sleeve - PTFE, complete | 1006 485# |
| 4 | Hose connection - Ø 10-12 mm, complete (incl. pos 4.1) | 1006 531 |
| 4.1 | O-ring - Ø 16x1.5 mm | 205 141# |
| 5 | Threaded sleeve | 1006 483 |
| 6 | Connector (conveying air) - NW 5.5 | 1004 366 |
| 7 | Connector (supplementary air) - NW 5.5 | 1004 367 |
| 8 | O-ring-Ø11x1.5mm | 1000 532# |
| 9 | Filterelement-Ø9/4x27mm | 1003 698# |
| 10 | Nozzle | 1006 488 |
| 11 | Nozzlefixation-complete(incl.pos.11.1) | 1007 792 |
| 11.1 | O-ring - Ø 8x1 mm | 1007 793# |
| 12 | Body (red) | 1004 369 |

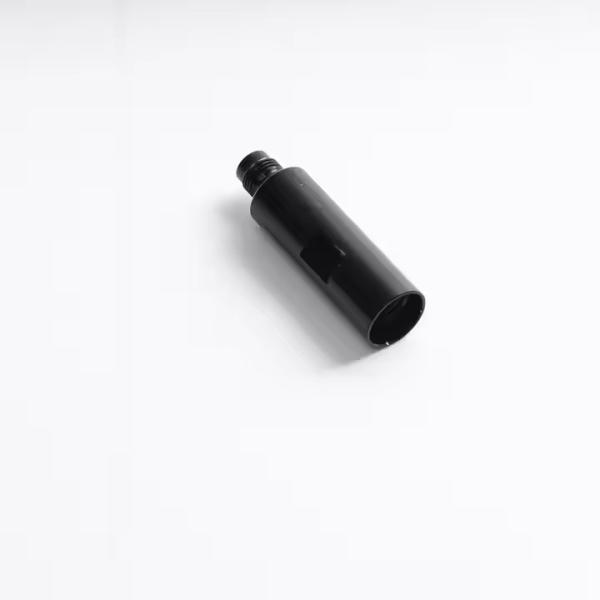

| 13 | Body (black) | 1004 370 |
| 16 | Conveying air hose - Ø 8/6 mm (red) | 103 500* |
| 17 | Supplementary air hose - Ø 8/6 mm (black) | 103 756* |
| 18 | Quick release coupling for conveying air hose - NW5-Ø 8 mm | 261 645 |
| 19 | Quick release coupling for supplementary air hose - NW5-Ø 8 mm | 261 637 |
| | Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard) | 105 139*# |
| | Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip | 1001 673*# |
| | Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip | 1001 674*# |
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic spraying equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder spraying machine, electrostatic liquid spray machine, electrostatic spraying gun, high voltage module, circuit board, powder barrel, powder tube, cable, reciprocator, spraying room, control cabinet, oven, vibration sieve, air shower, gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrostatic powder coating and other industries.
Our products are widelyrecognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customersfrom all walks of life to contact us for future business relationships and mutual success!
Product Tags:
|
|
IG06 Injector Black Marking Supplementary Air Check Valve Unit 1004370 1005590 Powder Coating Accessories Images
|
